Reference Statement
The nec plus ultra.

This speaker system was created in pure and well-studied lines to create not only a superb look, but unparalleled sound rendition, based on the concept behind the already well-reputed Reference. It will enthral future owners with its exceptional dynamics and musicality, its three-dimensional space and vibrantly alive, natural soundstage.

Then there’s its flawless rendering of any genre of music, along with impressive sound levels from the deepest bass to the highest notes. The Reference Statement is also remarkable in its exceptional ease-of-use, thanks to remote operation of the MTM couple (medium tweeter) diffusion angle.

The sub tower extends the range of the deepest bass allowing the wideband Reference to reproduce the entire spectrum of high bass with even more dynamics and control.

It also adapts to all amplification systems and rooms, thanks to a medium-bass and sub-bass frequency filter included in a separate unit that is added between the pre-amps and the amps.

reference statement.png

Technical specifications

  • 2 Reference full rage speakers with:

    • 2 x 8 transducers in full d’Appolito configuration -

  • 2 Reference sub towers with:

    • 2 x 6 transduce and 2x3 monoblock amplifiers of 1200 W each

  • 2 x 13 inches high excursion woofers, 4 x 16,5cm (6.5”) neodymium medium drivers, 2 x neodymium tweeters and 2 x Ribbon supertweeters

  • 4 massive aluminium cabinets with 24 independent closed chambers

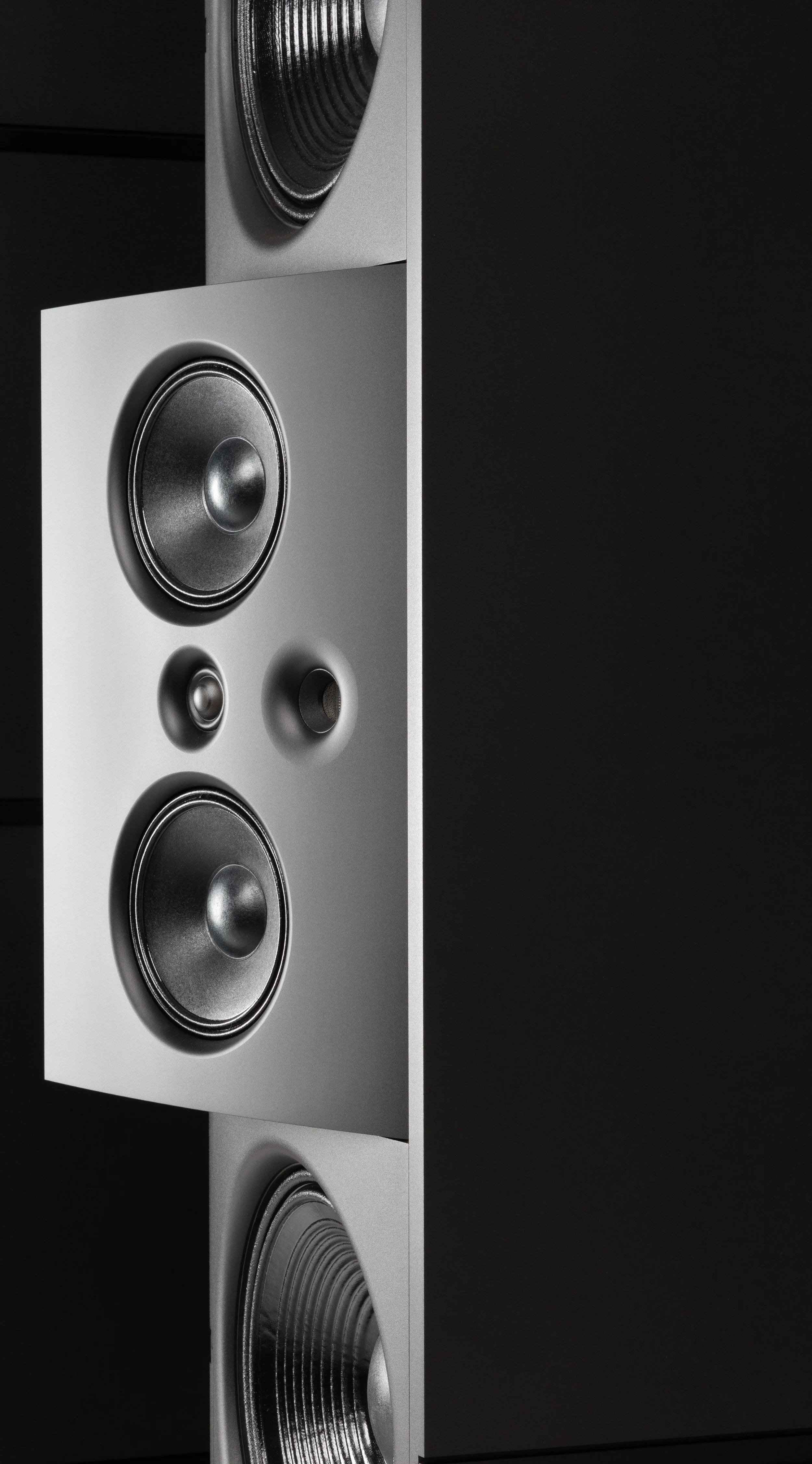

  • Motorized angle deviation of the MTM section

  • Passive-active 5 ways system, with analogue active crossover for bass and sub woofer section

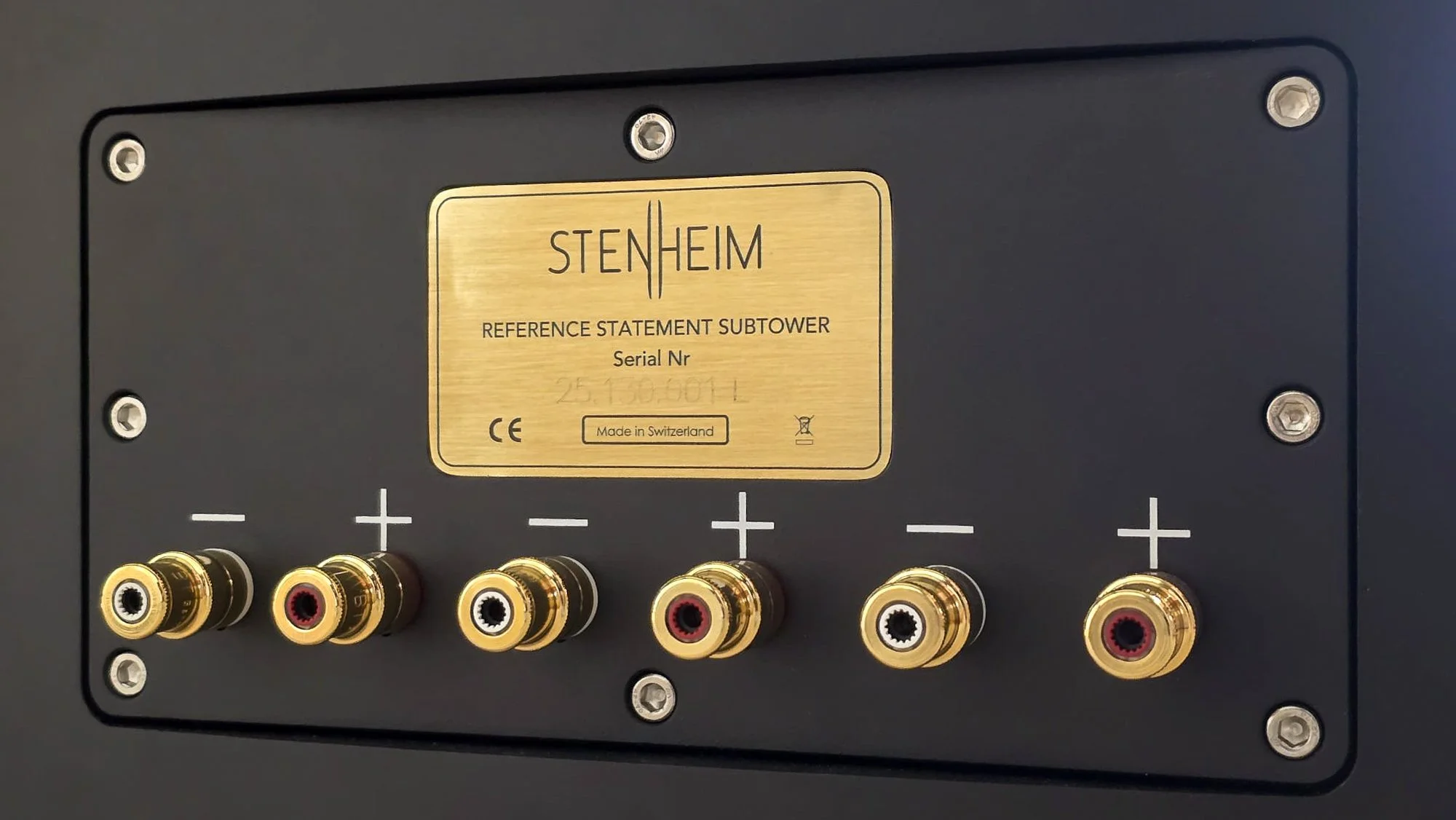

  • Connection with 2 stereo or 4 mono separate amplifiers, and 2 mono amplifiers for the sub towers

  • Frequency response: 10Hz to 100kHz

  • Power handling:

    • Sub Tower: 3600 W

    • Bass section: 1400 W

    • Medium-tweeter section: 250 W

  • System total power: more than 10'000 W

  • Nominal impedance: 4 Ohms, the minimum impedance

  • Sensitivity: 96dB SPL/2.83V/1m

  • Dimensions: 4x Height 189cm (74,4’’) x Width 37cm (14,5’’) x Depht 56cm (22’’)

  • Weight: 4 x 300kg (661,4lbs) including Ultimate Reference Stands

  • 2 x mono active analogue 3 ways crossover

  • Warranty: 5 years
